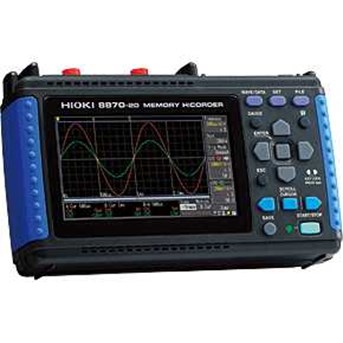

HIOKI 8870-20 MEMORY HiCORDER

Easy recording anytime, anywhere! : - Compact and easy to carry - Easy, intuitive operation - Simple PC connection - Fast, 1MS/s performance despite the compact size - Built-in, compact-yet-sharp QVGA-TFT wide LCD Basic specifications (Accuracy guaranteed for 1 year) : Number of channels : 2 analog and 4 logic channels (standard equipment, logic grounds are common with instrument ground) Measurement ranges : 10mV to 50V/div (10 div full-scale), 12 ranges, resolution : 1/100 of range Max. allowable input : DC 400V Frequency characteristics : DC to 50kHz (-3dB) Time axis : 100 ¼s to 5 min/div, 20 ranges,at 100 points/div resolution, three steps of time-axis magnification from 2× to 10×, and nine steps of time-axis compression from 0.5× to 0.001×. Measurement functions : MEM (high-speed recording) Memory capacity : 12-bits × 2M-Words/ch Removable storage : CF Card Type I slot × 1, Up to 1 GB Display : 4.3-inch WQVGA-TFT color LCD (480 × 272 dots) Displayable languages : English, Japanese Note: Korean (special order only, please contact HIOKI) External interfaces : One USB 2.0 High Speed mini-B receptacle: transfers files from the installed CF card to a PC when connected (mass storage class device) Note: The CF card installed in the HiCORDER appears as a removable disk on the PC, but communication functions such as the capability to change HiCORDER settings from the PC are not provided. Printer : None Functions : Numerical calculation, Cursor readout, Scaling function, Screen copy, Gauge display, Waveform data / Setting configurations backup, start condition retention, Auto-save, Instantaneous value or RMS value display (only DC and 50/60 Hz) Power consumption : Use with the AC ADAPTER 9786: 100 to 240V AC (50/60 Hz) 30 VA Max. BATTERY PACK 9780: Continuous use 2 hours (AC adapter has priority when both are used) 12V DC supply: 10 to 16V, 10VA Max. (cable available by special order) Charging functions The installed battery pack charges when the AC adapter is connected. Charging time is about 200 minutes at 25°C. Notes: Charging time depends on battery condition. Charging is disabled to protect the battery at ambient temperatures out of 5°C to 30°C. Dimensions, mass : 176mm (6.93in) W × 101mm (3.98in) H × 41mm (1.61in) D, 600g (21.2oz) (with the BATTERY PACK 9780 installed) Supplied accessories : Instruction Manual × 1, Measurement Guide × 1, AC ADAPTER 9786 × 1, Strap × 1, USB cable × 1, Application Disk (dedicated program for the 8870-20/-21) × 1, PROTECTION SHEET 9809 × 1
